Case study

The world’s largest offshore wind farm

Outer Thames Estuary, UK

Stock images for Fugro.com

Client

Shell, DONG Energy

Fugro was involved at all stages of the development of a flagship renewable energy project which was officially inaugurated in July 2013. The London Array project, jointly owned by DONG Energy, Masdar and E.ON, set a new record as the world’s largest offshore wind farm.

Life cycle

Planning, feasibility, conceptual design

Design

Construction

Operations and maintenance

Decommissioning

Show full process

London Array is located around 20 kilometres off the Kent and Essex coasts in the UK’s Outer Thames Estuary. With the potential to supply around 500,000 homes, its 175 wind turbines and two offshore substations generate 630 MW of power.

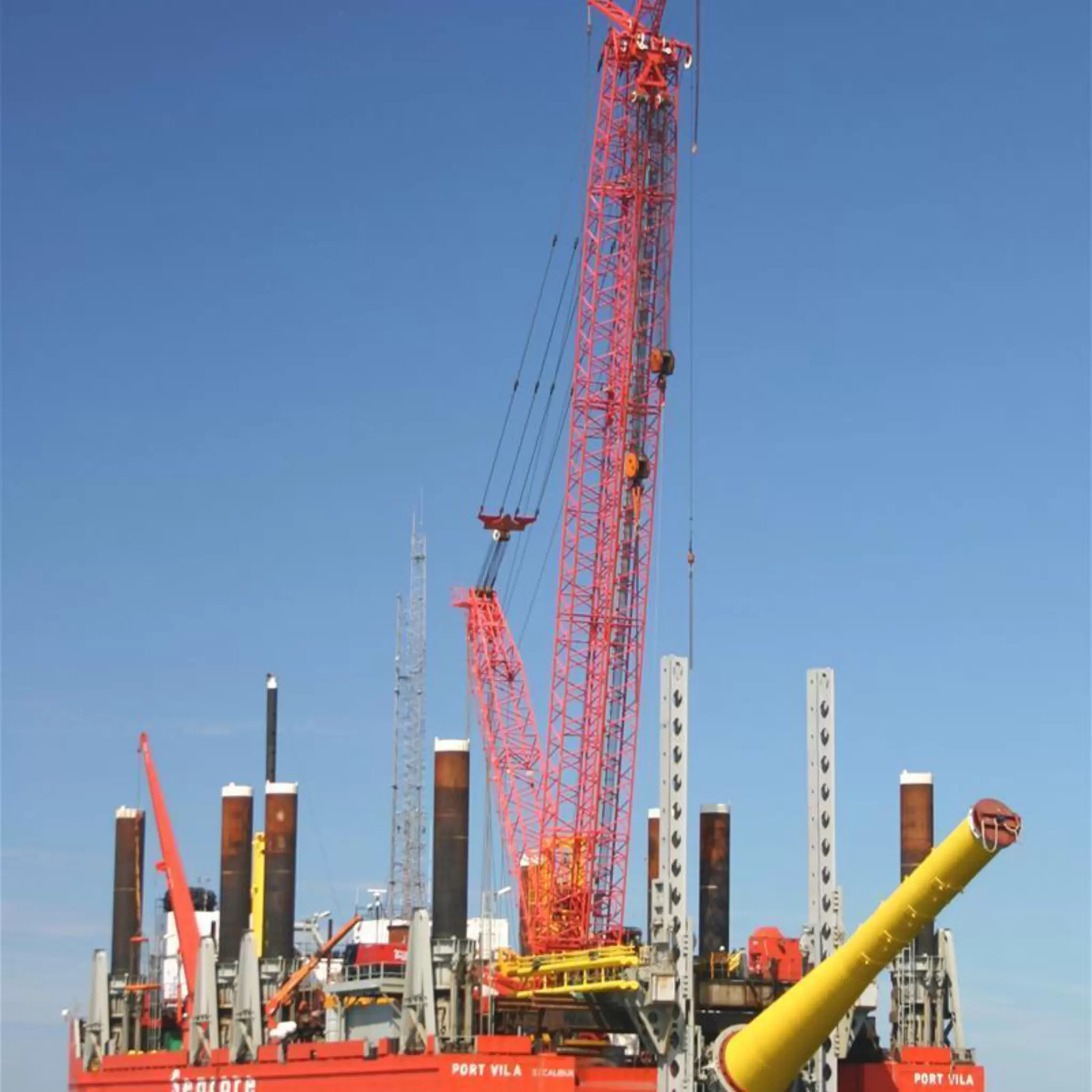

We undertook numerous roles, beginning with the installation of the 70 metre high met mast using the jack-up platform, Excalibur. From summer 2007 until spring 2008, we conducted the largest geophysical and geotechnical site survey ever performed for a UK wind farm (at the time) for both the turbine foundations and elements of the cable route. These surveys utilised Excalibur and the vessel Fugro Commander. The workscope also included preliminary UXO clearance surveys for the jack-up platform and vessel locations.

Our environmental team performed pre-construction surveys whilst our geophysical specialists performed detailed studies across the site and cable routes as well as further UXO surveys. Positioning support was provided to some of the contractors and maintenance services for the metocean buoys continue.

The metocean data collected ensures safe and effective working and the identification of the best times for carrying out certain operations.

Case study images for Fugro.com

Photo courtesy of London Array Limited

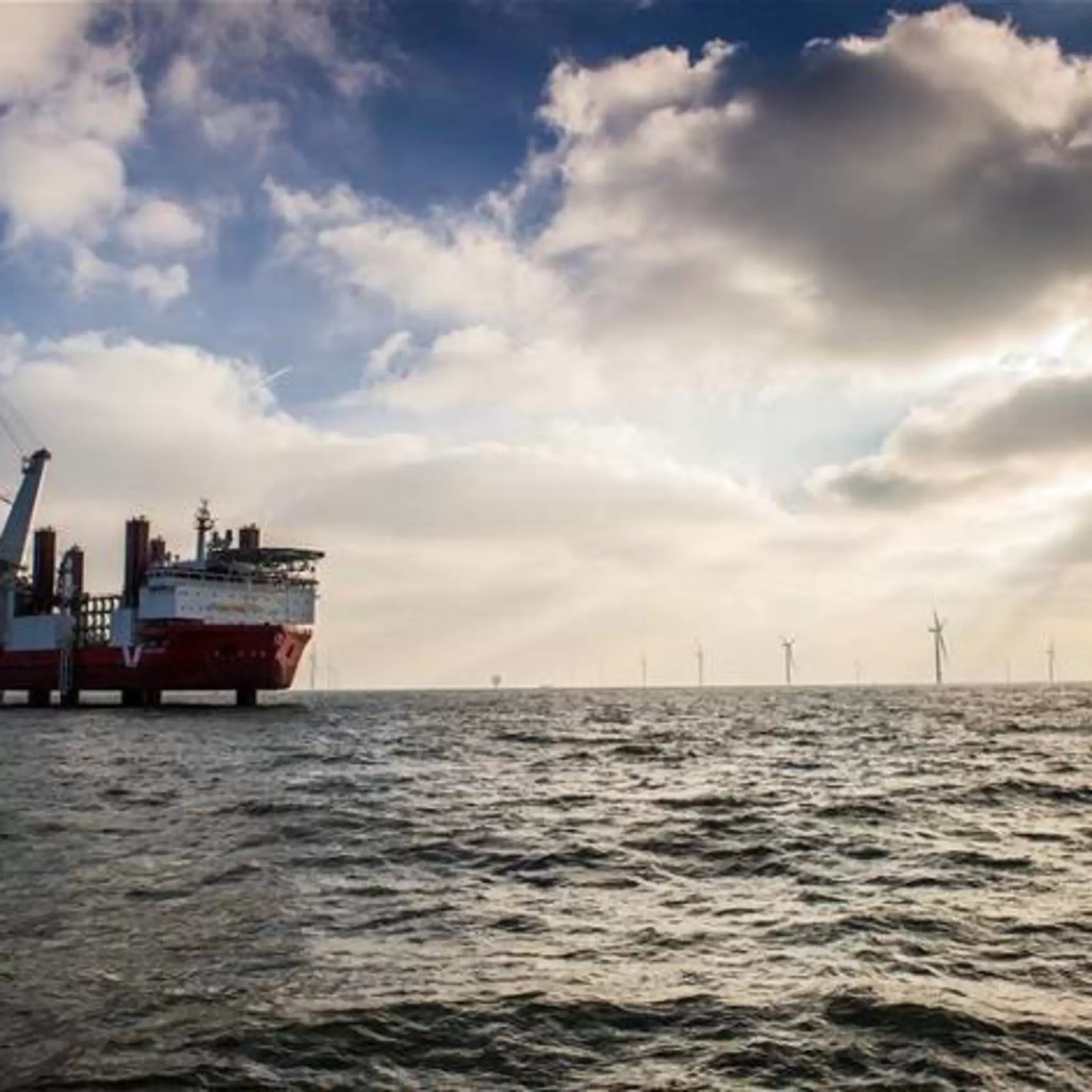

Numerous roles for Fugro in the development of a flagship renewable energy project

Case study images for Fugro.com

From early feasibility studies through design, consent and development Fugro has been involved at all stages and we continue to play an active role now during operations. This project truly demonstrates the collective breadth of services that we are able to provide to offshore wind farm developers and contractors.

Tony Hodgson

Global Business Development Manager, Fugro Renewable Services

UXO risk mitigation - survey

Used technology

UXO risk mitigation

UXO risk mitigation marine

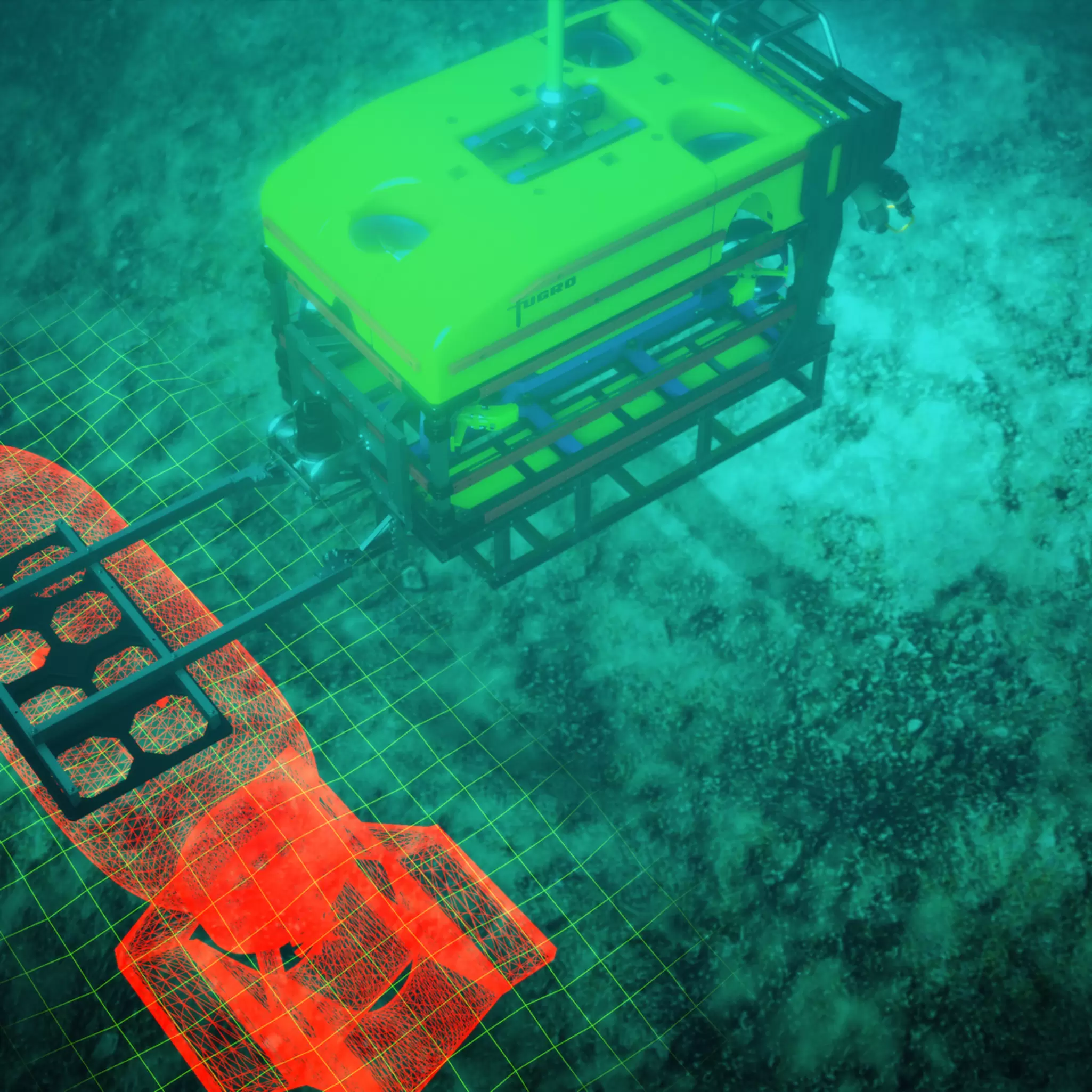

Our unexploded ordnance (UXO) risk mitigation solutions deliver a tailored mitigation strategy for your project and uses advanced tools to clear your site from UXO threats.
