Case study
Subsea installation support
Sea of Okhotsk, Russia
Client
JSC Mezhregiontruboprovodstroy (MRTS)
Utilising one of our multi-purpose support vessels, we provided installation and support activities for JSC Mezhregiontruboprovodstroy (MRTS), one of Russia’s largest energy industry construction contractors.
Life cycle
Planning, feasibility, conceptual design
Design
Construction
Operations and maintenance
Decommissioning
Show full process
FCV® 3000
FCV® 3000

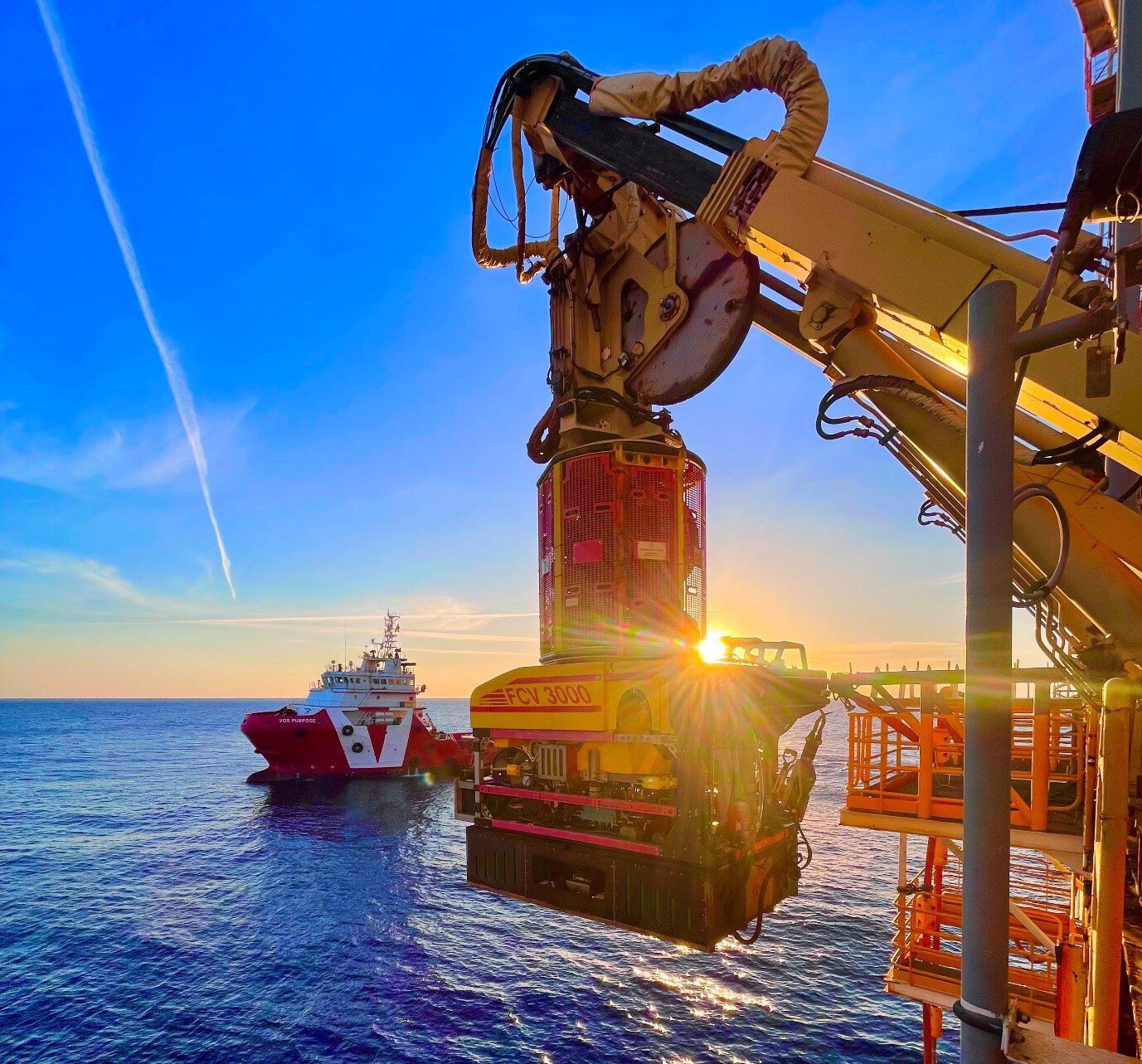

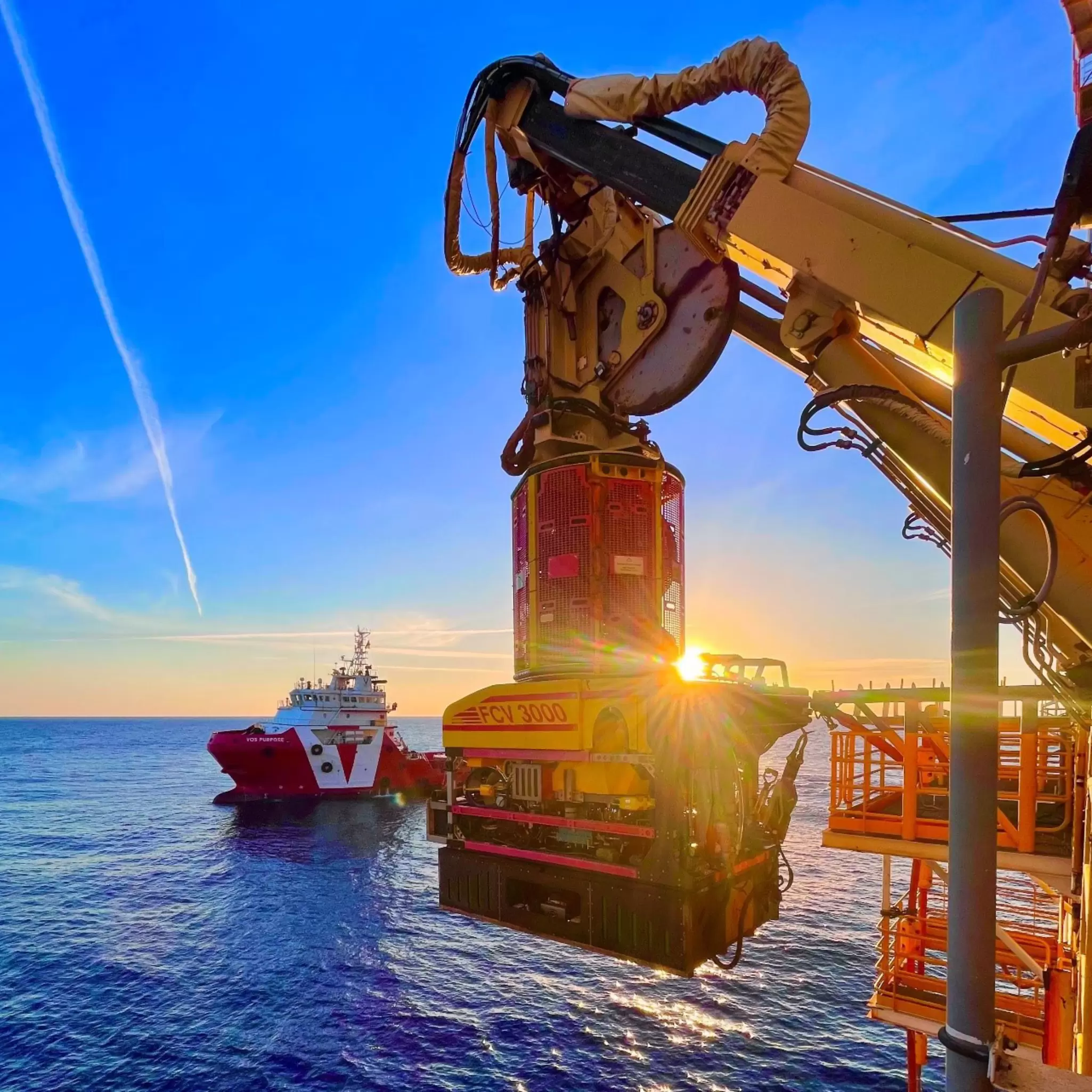

The FCV® 3000 is a work-class remotely operated vehicle designed to capture and deliver accurate subsea data fast and safely.
Installation and support for one of Russia’s largest energy industry construction contractors

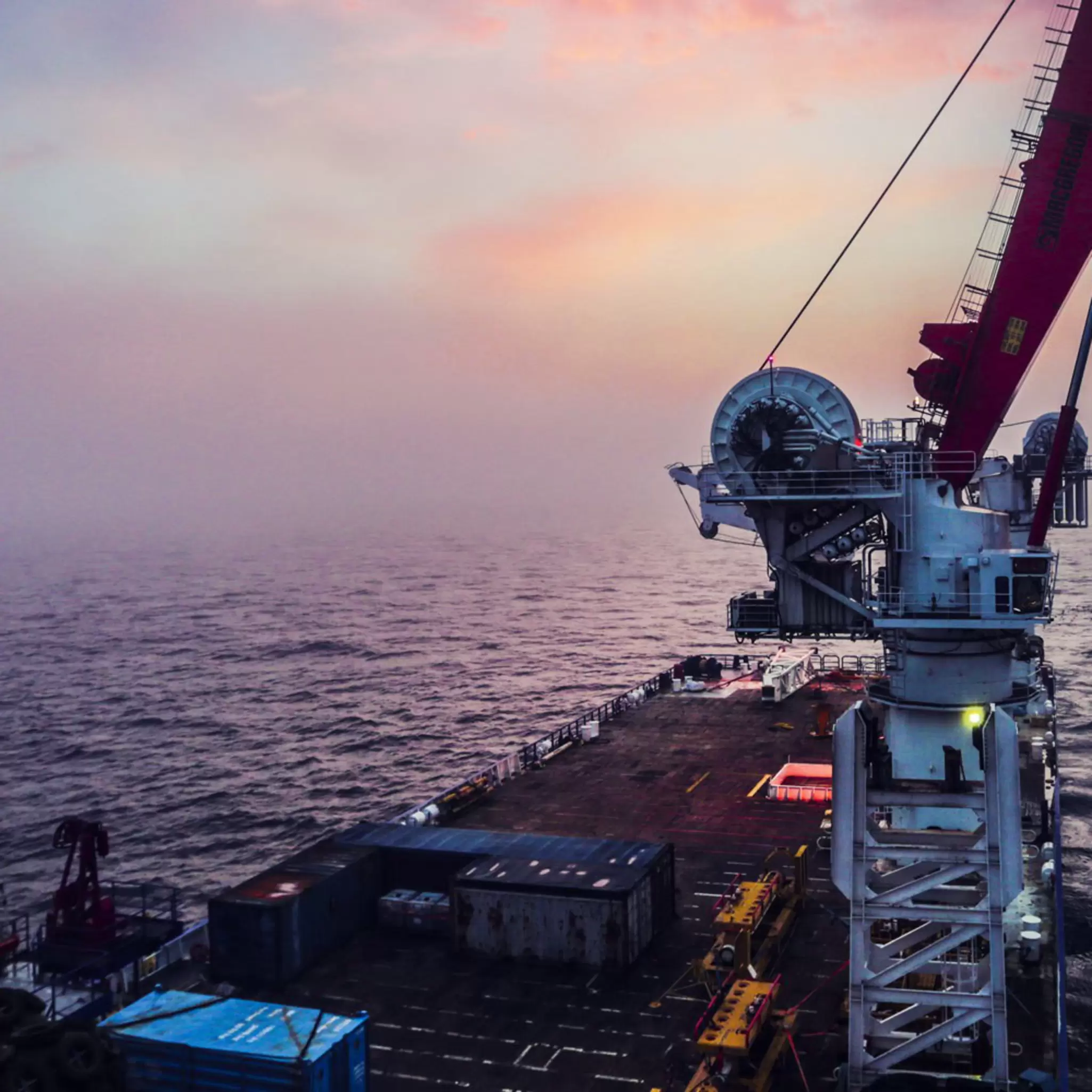

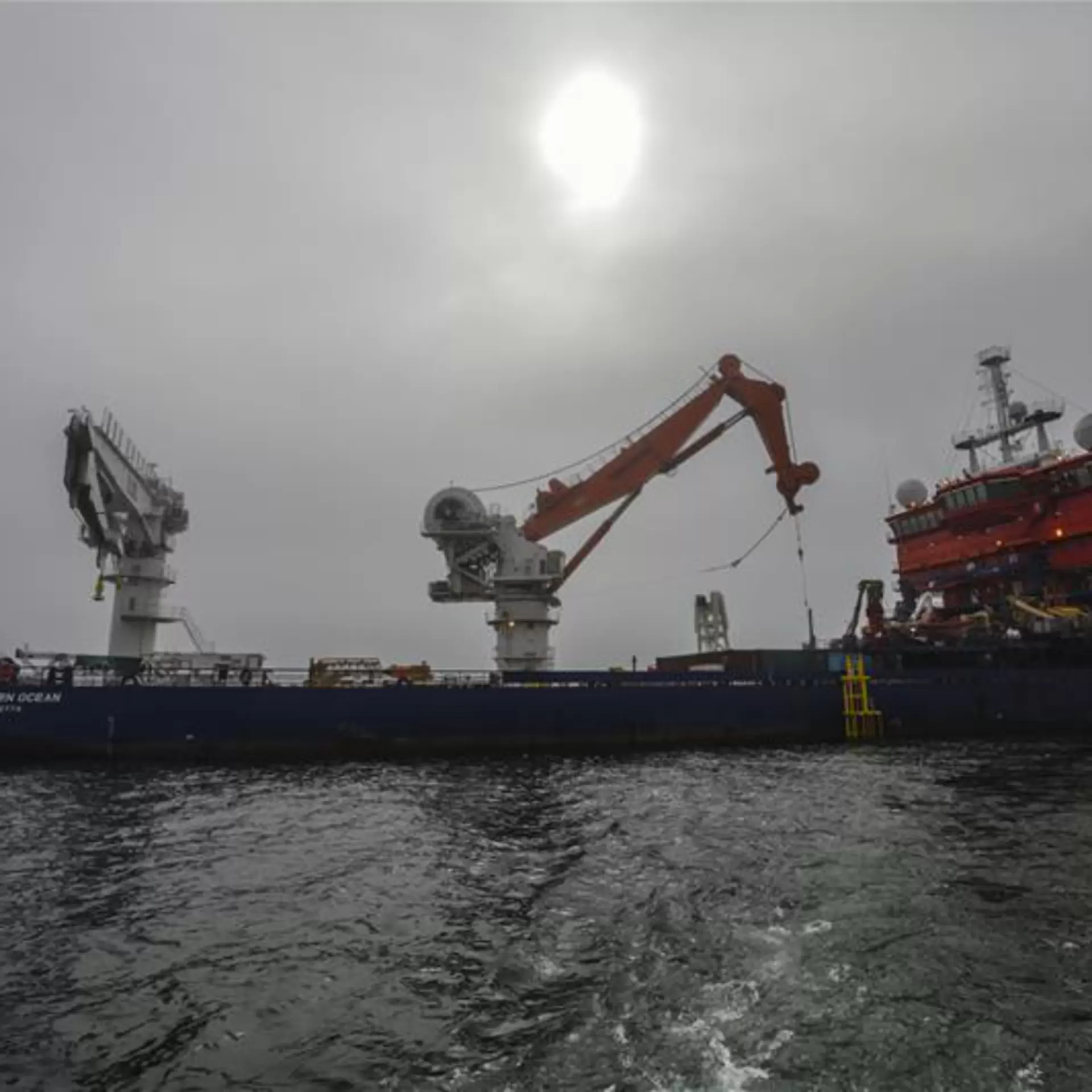

Located in approximately 90 metres of water, 28 kilometres off Sakhalin Island in the Sea of Okhotsk, the remote Kirinskoye gas condensate field is part of the Sakhalin III project in Russia. Arriving in Korsakov, Sakhalin in late May 2013, the multi-purpose support vessel, Southern Ocean, performed the workscope during the Russian summer period. Project completion was planned for mid-September, prior to the winter sea ice re-forming.
Included in the wide-ranging workscope:
Pipeline pre-commissioning and pressure testing
Recovery and installation of pig launchers-receivers

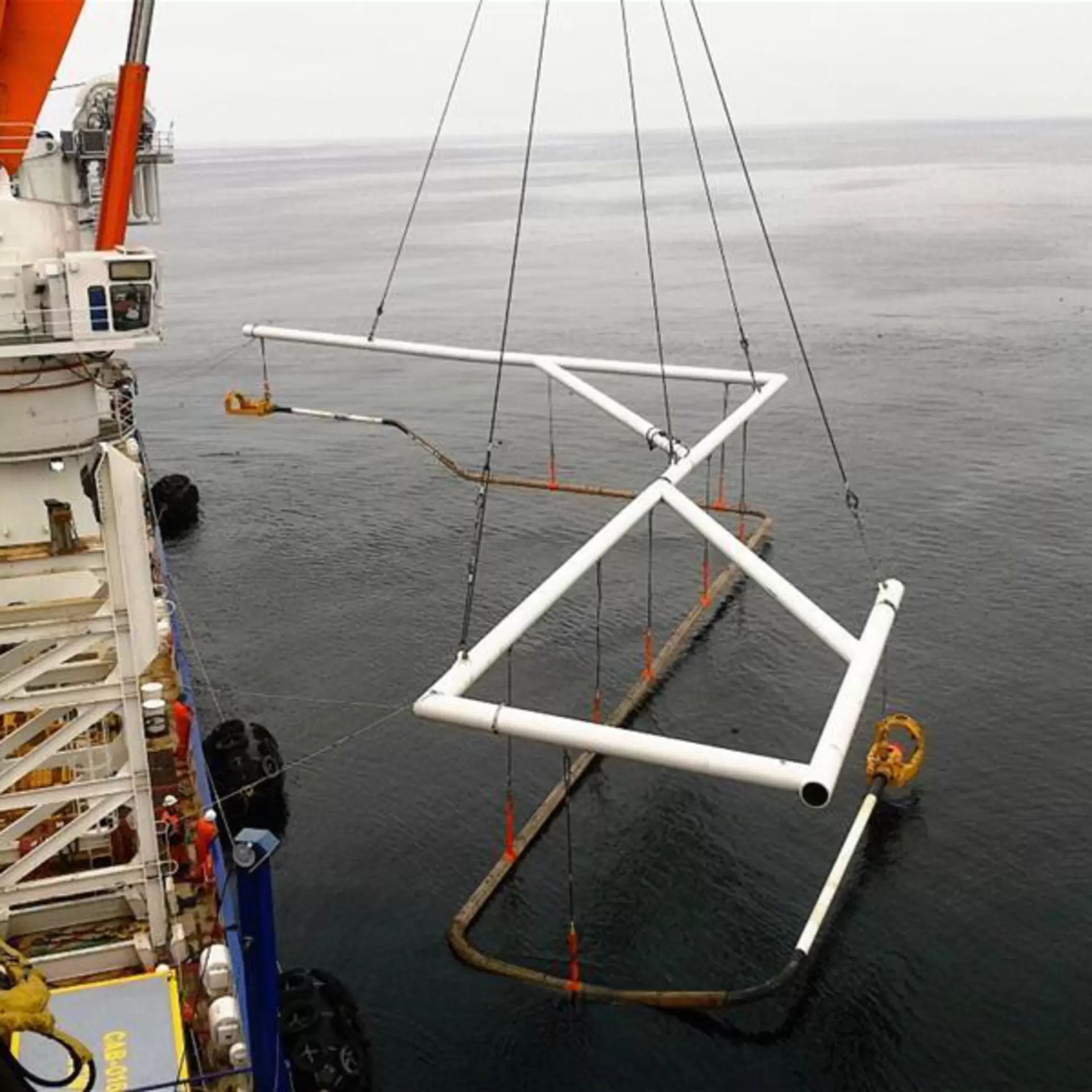

Spool metrology and installation
X-tree protection structure installation
SDU and PLET protection structure installation
MEG flexible jumper installation
Installation of umbilical protection frames
Mobilisation, demobilisation and crew changes
Additional services included the provision of two FCV® 3000 work class ROVs and associated remote tooling, as well as back deck lifting equipment and personnel.
1 / 2
Subsea installation support
“Fugro’s previous work at Sakhalin was invaluable in the delivery of the key project objectives, completing the workscope to the satisfaction of both client and regulatory authorities in the safest, most efficient manner and without incident.”
Geoff Hogg
How we can help you
Our specialist expertise and multi-purpose support vessels provide installation support for any offshore energy construction project.
